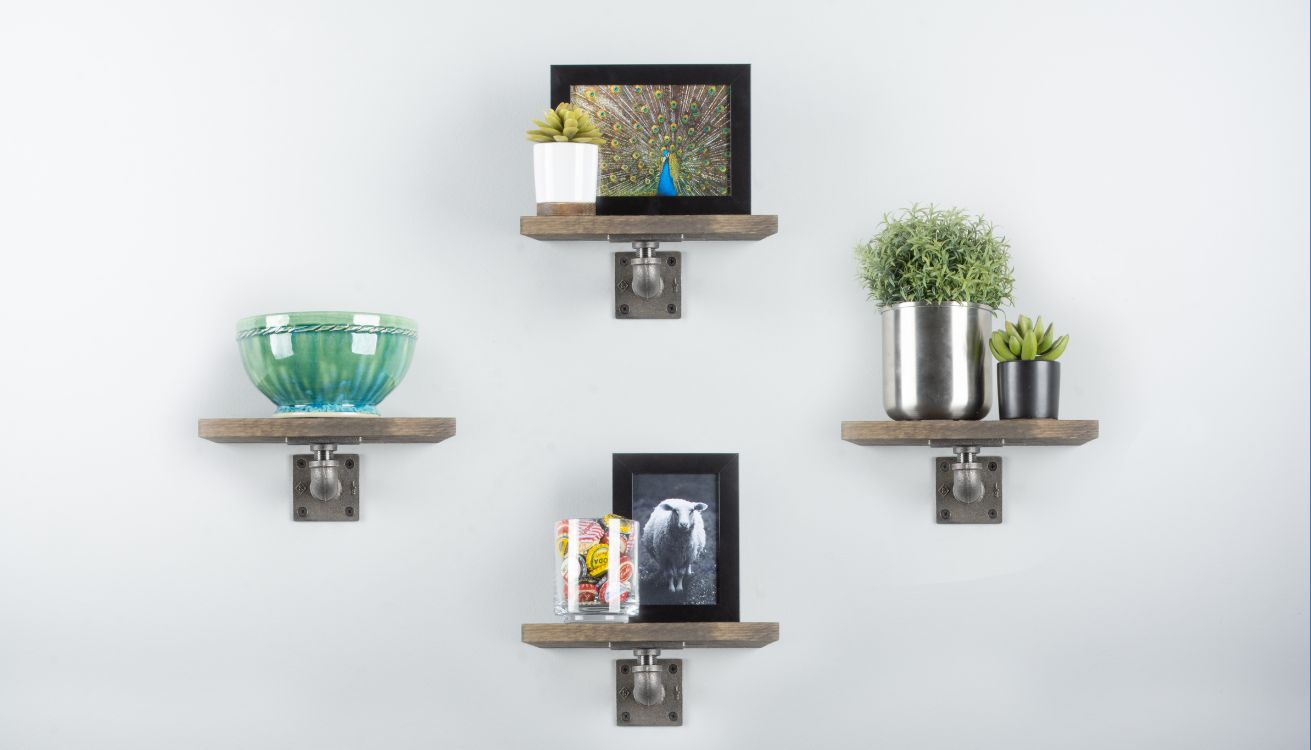

Installing Wall-Mounted Pipe Shelves Step by Step: The Ultimate DIY Guide

Nothing transforms a space quite like the warm, rustic industrial aesthetic of genuine steel pipe shelving. Whether you are looking to clear up clutter, create a focal wall, or display your favorite home accents, learning how to install pipe shelving is one of the most rewarding home improvement projects you can take on this weekend.

At PIPE DECOR®, our real industrial steel pipes and malleable iron fittings are built to last a lifetime. But to make sure your custom setup stays rock-solid, a proper installation is key.

In this pipe shelf installation guide, we'll walk you through everything you need to know from gathering the right tools to securing your brackets and styling your shelves for a fresh, breezy summer look. Plus, if you are planning a full-room makeover, stick around to the end for an exclusive summer savings promotion!

What You’ll Need: Tools & Materials

Before you begin your wall mounted pipe shelf DIY project, set yourself up for success by gathering all essential tools and hardware ahead of time. Having everything in one place makes the installation process smooth, accurate, and stress-free.

Essential Tools

• Stud Finder: Essential for locating strong structural support behind your drywall.

• Power Drill & Bits: Includes drill bits for pre-drilling pilot holes and driver bits for screws/bolts.

• Bubble Level (or Laser Level): Keeps your flanges and shelves perfectly straight.

• Adjustable Wrench or Pipe Wrench: Helps tighten fittings and align pipe flanges securely.

• Tape Measure & Pencil: For accurate layout alignment.

Materials & Hardware

• PIPE DECOR® Shelf Kit or Individual Pipe Components: Flanges, nipples, elbows, and tees.

• Wood Shelving Boards: Solid wood cut to your desired length and pre-finished.

• Heavy-Duty Fasteners: Lag bolts (for mounting directly into wooden studs) and high-load drywall anchors (if studs aren't perfectly positioned).

• Pipe Straps / Clips: To secure the wooden boards to the steel pipes.

Step 1: Locating Studs and Marking Positions

A sturdy shelf starts with a solid foundation. While drywall anchors have their place, anchor bolts secured directly into wood wall studs offer maximum weight capacity and long-term peace of mind.

1. Scan for Wall Studs

Use your stud finder to locate the studs along the wall where you plan to install your shelving unit. Standard wall studs are typically spaced 16 inches or 24 inches apart on center. Move the stud finder horizontally and mark both edges of each stud using a pencil to locate the exact center.

2. Determine Your Shelf Height & Layout

Hold one of your mounting flanges up against the wall at your desired height, ensuring the center of the flange aligns with your stud marks. Use a tape measure to maintain consistent spacing between vertical supports if you are installing a multi-tier unit.

3. Mark the Screw Holes

Once the flange is aligned over the stud center and leveled horizontally with your second flange location, place a pencil mark inside each mounting hole on the flange.

Pro Tip: Double-check your height measurements from the floor on both sides to guarantee your entire unit sits level across the room!

Step 2: Mounting the Flanges: Pre-Drilling, Lag Bolts, and Anchorage

The flanges are the critical connection point between your wall and your pipe structure. Taking extra care during this step ensures your shelves can support heavy items without sagging or pulling away from the wall.

Pre-Drilling Pilot Holes

Never drive heavy lag bolts directly into wood without pre-drilling. Pre-drilling prevents the wood stud from splitting and allows the threads to grip cleanly. Select a drill bit slightly smaller than the core shank of your lag bolt and drill pilot holes roughly 1.5 to 2 inches deep at each pencil mark.

Driving the Fasteners

Position the PIPE DECOR® flange over your pre-drilled holes. Insert your heavy-duty lag bolts and tighten them down using your drill driver or a socket wrench until the flange rests completely flush against the drywall without wobbling.

If one of your mounting holes falls outside a stud, utilize heavy-duty toggle bolts rated for high loads rather than standard plastic expansion anchors.

Step 3: Assembling the Pipe Frame on the Wall

With your base flanges securely mounted, it is time to assemble the industrial pipe framework. One of the greatest advantages of using genuine pipe fittings is the flexibility to make micro-adjustments during assembly.

1. Thread the Pipe Nipples into the Flanges: Screw the horizontal pipe arms into your wall flanges by hand turning clockwise.

2. Attach Fittings (Elbows or Tees): Screw your 90-degree elbows or tees onto the ends of the pipe arms.

3. Check for Parallel Alignment: Use your level across two parallel pipe arms to make sure they extend out from the wall at the exact same angle. If one side sits slightly high, simply turn the pipe nipple a fraction of a thread counter-clockwise to bring it down into perfect horizontal alignment.

4. Tighten Securely: Use an adjustable wrench wrapped in a soft cloth (to protect the pipe’s finish) for final tightening adjustments.

Step 4: Preparing, Securing, and Finishing Wood Shelves

The contrast between natural wood and dark industrial steel is what gives pipe shelving its timeless appeal.

Preparing and Finishing the Wood

If you are finishing raw wood boards yourself:

• Sand Smooth: Start with 120-grit sandpaper and finish with 220-grit for a smooth surface.

• Stain or Seal: Apply your favorite wood stain to match your décor. For a modern summer vibe, light oaks, natural pine, or clear coat sealants highlight beautiful grain patterns while keeping the room feeling airy.

• Allow Proper Cure Time: Ensure stains and protective topcoats are completely dry before placing boards onto the metal pipe frame.

Securing the Boards to the Frame

Rest your finished wooden board across the extended pipe arms. Check with a bubble level along both the length and depth of the shelf.

To keep the wooden shelves from shifting when items are moved:

• Attach metal pipe straps (U-clips) underneath the shelf board, wrapping around the pipe support arm.

• Fasten the straps into the underside of the wood using short wood screws that will not penetrate through the top surface of the board.

Understanding Weight Limits: What Can You Safely Store?

A common question in every pipe shelf installation guide is how much weight these units can carry. Because PIPE DECOR® products use authentic schedule 40 industrial steel pipes, the metal itself can handle hundreds of pounds. However, the total weight capacity of your system depends heavily on your wall construction and mounting method.

Estimated Weight Capacity Guidelines

• Mounted Directly into Solid Wood Studs: A standard two-bracket pipe shelf installed correctly into wood studs with lag bolts can comfortably support 75 to 100+ lbs per shelf level. This is ideal for heavy hardcover book collections, cast iron cookware, or dense kitchen stoneware.

• Mounted using Heavy-Duty Toggle Anchors in Drywall: Reduces capacity to roughly 30 to 45 lbs total per shelf level. Suitable for decorative items, small plants, framed photos, and light storage containers.

Safety Rule: Always distribute heavy weight evenly across the entire length of the board rather than concentrating heavy loads in the center or at the outer edges.

Summer Vibes: Styling Your New Pipe Shelves

Once your installation is complete, the fun part begins: styling! Transitioning your space for the season is easy when you have open industrial shelving as your backdrop. Bring a warm, coastal, or breezy summer feel to your newly installed shelves with these simple design tips:

1. Incorporate Fresh Greenery

Brighten up the dark steel finish with living plants. Trailing vines like Pothos or Philodendrons look stunning cascading over the edges of lower pipe arms. Succulents, air plants, and potted herbs bring vibrant pops of green that breathe life into any room.

2. Mix Textures and Natural Tones

Balance the raw, heavy feel of industrial iron with light natural materials:

• Woven seagrass or jute baskets for hidden storage.

• Light-colored ceramics, terracotta pots, or whitewashed glass vases.

• Stacked books with light linen covers turned outward.

3. Keep It Airy & Uncluttered

Summer styling relies on open space and light airflow. Resist the urge to pack every inch of your shelf. Leave breathing room between decorative clusters to highlight both the natural wood grain and the bold industrial hardware supporting it.

Ready to Build Your Own Masterpiece?

Mastering wall mounted pipe shelf DIY projects is one of the quickest ways to elevate your home's character, functionality, and storage space. With real industrial hardware from PIPE DECOR®, you have the freedom to build custom shelving configurations tailored specifically to your home.

Whether you are building a simple entryway display, a full-wall library, or a sleek coffee bar, we have all the pre-built kits and individual pipe components you need to bring your vision to life.
